Stair Maker

project: The Serpentine Stairs

location: Potrero Hill, San Francisco
date: 2018
size: 1.1 acres


Description: We developed this script in order to create multiple metal staircase runs for a public stairway. The script allows us to control the side panels and guardrails, the tread/raiser ratios, the railing lengths and diameters, and the overall length and slope of each run.
email information@fletcherstudio.com to request materials

General script overview



INITIAL INPUTS FROM RHINO



DEFINING PARAMETERS FOR THE COMPONENTS OF STAIR

Screen Shot 2021-04-29 at 6.27.36 PM.png


CHANGING PARAMETER: STAIR WIDTH



CHANGING PARAMETER: STEP COUNT

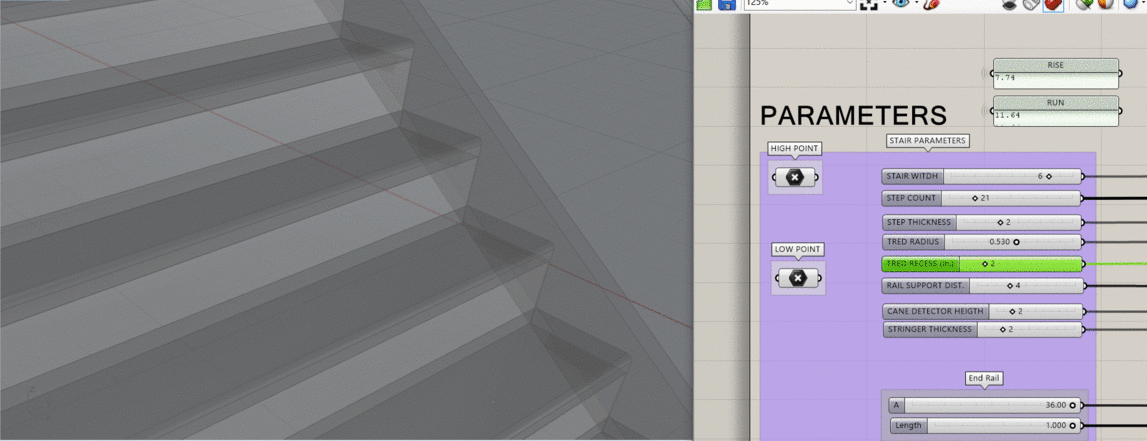

As we change the step counts these two update the rise and run length



CHANGING PARAMETER: STEP THICKNESS



CHANGING PARAMETER: TREAD RADIUS



CHANGING PARAMETER: TREAD RECESS



CHANGING PARAMETER: CANE DETECTOR HEIGHT



CHANGING PARAMETER: STRINGER THICKNESS



CHANGING PARAMETER: RAIL END



CHANGING PARAMETER: RAIL END ANGLE



BAKING SEQUENCE
